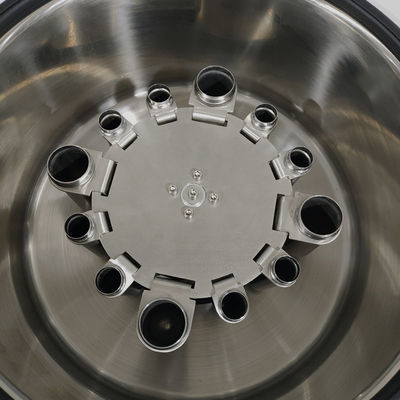

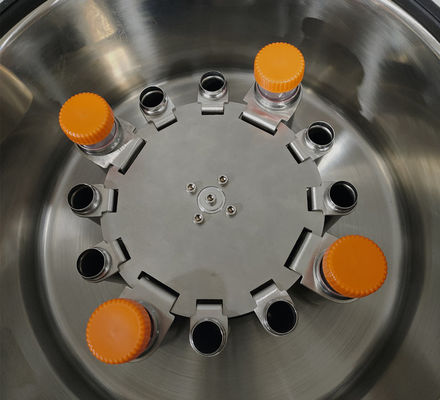

240ml Ventilated Clinical Benchtop Centrifuge Syringe Swing Out Rotor

Place of Origin: China
Brand Name: Cenlee
Certification: ISO9001/13485，CE
Model Number: TD4E
Product Details
Place of Origin:
China
Brand Name:
Cenlee
Certification:
ISO9001/13485，CE
Model Number:
TD4E
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
Wooden Case
Supply Ability:
50 sets/month
Specifications
Name:
TD4E Syringe Centrifuge Clinical Benchtop Centrifuge
Type:
Ventilated Centrifuge
Max. RPM::
4000
Max. RCF::
2580 X G
Max. Capacity::
240ml
Temp. Control::
N/A
Highlight:

240ml Clinical Benchtop Centrifuge

,

Ventilated Clinical Benchtop Centrifuge

,

Swing Out Rotor Syringe centrifuge

Product Description

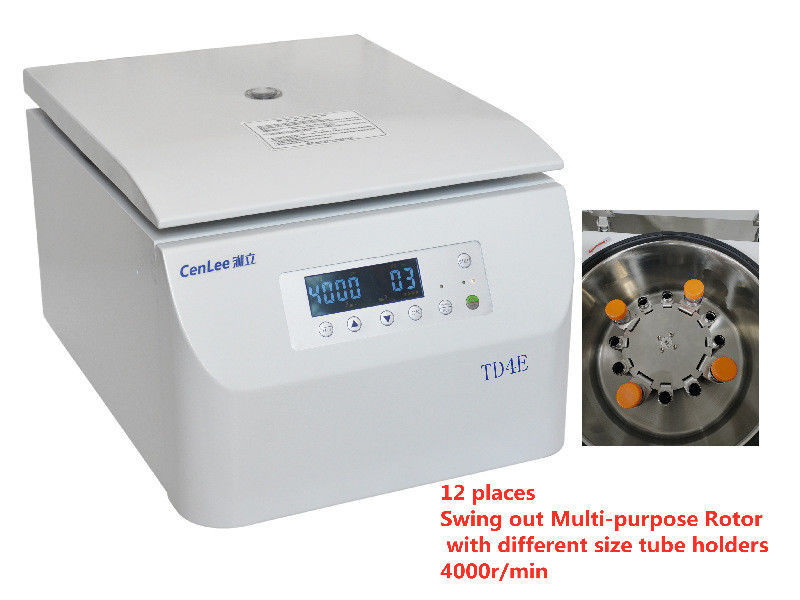

TD4E Syringe centrifuge Clinical Benchtop Centrifuge



  • Microprocessor-based controlled and DC brushless motor drived for smooth running and low noise.
  • Steel boby with compact and streamline design and unique damping system for automatic balancing function.
  • User-friendly operational panel wich automatic RCF/RPM mode.
  • Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  • Ventilated centrifuge for small temperature rise during seperation.
  • Various rotors designed for different capacity tubes for your option.
Specifications
Small Low Speed Centrifuge, with rotor
Model TD4E
Max.Speed (r/min) 4000
Max. RCF (x g) 2503
Max. Capacity (ml) 180
Control Microprocessor
Drive DC Brushless Motor
Speed Range (r/min) 100-4000
Speed Control Accuracy (r/min) ±20
Timer Range(min) 1-99
Noise (dB) ≤ 60
Power Supply V (Hz) 220/110 (50/60), 5A, single phase
Dim. (W x D x H) mm 355 x 485 x 285
Weight (kg) 22
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

 Adapters for smaller tubes

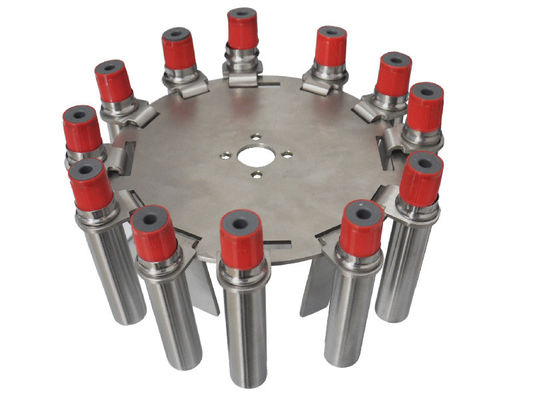

Swing-out Rotor with tube holders 1 12 x 15 4000 2275 1.5-15 Available
Swing-out Rotor with tube holders 1 12 x 10 spring 4000 2503 10 Unavailable
Swing-out Rotor with tube holders 1 12 x 10 vacutainers 4000 2275 1.5-10 Available
