Frequency Converter PRP Centrifuges 1000ml 5000rpm Benchtop Low Speed

Frequency Converter PRP Centrifuges 1000ml 5000rpm Benchtop Low Speed

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
TDZ5-WS
Name:
TDZ5-WS Benchtop Low Speed Centrifuge PRP Centrifuges
Drive:
Frequency Converter Motor
Max. RPM::
5000rpm
Max. RCF::
4390 X G
Max. Capacity::
4 X 250ml
Temp. Control::
N/A
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

Frequency Converter PRP Centrifuges

,

1000ml PRP Centrifuges

,

prp centrifuge machine

Product Description

TDZ5-WS Benchtop Low Speed Centrifuge PRP Centrifuges



  • Microprocessor-based controlled with user-friendly operational panel. LED or LCD display for your option. Seperation protocols can be automatic stored.
  • Frequency converter motor drived with superspeed shaft for smooth running and free maintanence.
  • Steel body and stainless steel chamber for easy cleaning and durability. Multistage damping structure for tiny vibration and low noise.
  • Lid interlocking device greatly increases the operational safety. Air conduction system reduces much heat to protect the control board and avoid the aging of circuits.
  • Designed with various protection devices for maximum operational safety, such as lid lock, over-speed, imbalace and so on. Diverse functions such as automatic calculation for RCF, automatic balancing ensure more safety. Rotors can be autoclavable.
  • Unique air guide design for small temperature rise during seperation to effectively protect samples.
Specifications
Benchtop Low Speed Large Capacity Centrifuge, with rotor
Model TDZ5-WS
Max.Speed (r/min) 5000
Max. RCF (x g) 4390
Max. Capacity (ml) 4 x 250
Control Microprocessor
Drive AC Frequency Conversion Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-5000
Speed Control Accuracy (r/min) ±30
Timer Range(min) 1-99
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 5A, single phase
Dim. (W x D x H) mm 415 x 590 x 355
Weight (kg) 44
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes

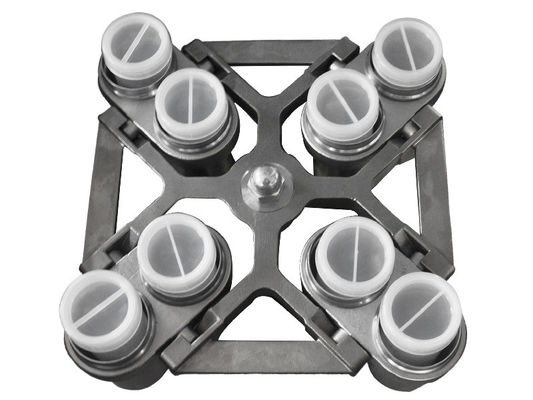

Swing-out Rotor with tube holders 1 4 x 100 5000 4390 1.5-100 Available
Swing-out Rotor with tube holders 2 32 (4 x 8) x 15 4200 2810 0.2-15 Available
32 (4 x 8) x 13-100 vacutainers 4200 2810 1.5-10 Available
32 (4 x 8) x 13-75/100 vacutainers 4200 2810 1.5-7 Available
8 (4 x 2) x 100 4000 2810 1.5-50 Available
8 (4 x 2) x 50 4000 2810 1.5-50 Available
Swing-out Rotor with baskets 64 (4 x 16) x 13-75/100 vacutainers 4000 2810 5-7 Unavailable
72 (4 x 18) x 13-75/100 vacutainers 4000 2810 5-7 Unavailable
48 (4 x 12) x 13-75/100 vacutainers 4000 2810 5-7 Unavailable
Microplate Rotor 3 2 x 2 x 96wells 4000 2200 0.2 Unavailable
Swing-out Rotor with buckets 4 4 x 250 4000 3000 1.5-250 Available
