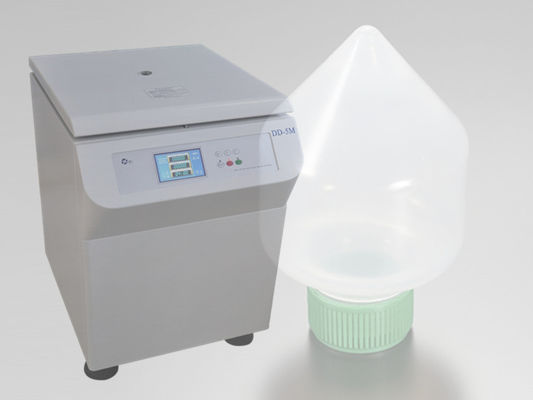

550mm Width 10 Decel Rate Blood Bank Refrigerated Centrifuge Swing Out Rotor 110V

550mm Width 10 Decel Rate Blood Bank Refrigerated Centrifuge Swing Out Rotor 110V

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
DD-5M
Name:
DD-5M Low Speed Large Capacity Centrifuge Blood Bank Centrifuge
Rotor Type:
Swing Out Rotor
Max. RPM::
5000r/min
Max. RCF::
4390 X G
Max. Capacity::
3000ml
Temp. Control::
N/A
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

550mm Width Blood Bank Refrigerated Centrifuge

,

10 Decel Rate Blood Bank Refrigerated Centrifuge

,

110V swing out rotor centrifuge

Product Description

DD-5M Low Speed Large Capacity Centrifuge Blood Bank Centrifuge



  • Microcomputer control with user-friendly operational panel and large LCD display. Running parameters can be automatically stored and RCF can be directly set to start the seperation.
  • High frequency brushless motor, equipped with super speed motor shaft ensures its smooth running.
  • Multistage damping structure for tiny vibration and low noise.
  • Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
  • Various protection devices including over-speed, lid lock, imbalance shutdown, etc. to ensure the maximum operational safety.
  • Unique air guide design offers small temperature rise. Special speed control technology gives fast acceleration and braking for high efficiency.
  • Various capacity adapters of 5ml, 7ml, 15ml, 30ml, 50ml, etc. for your option to meet the diverse research needs.
Specifications
Floorstanding Low Speed Superlarge Capacity Centrifuge, without rotor
Model DD-5M
Max.Speed (r/min) 5000
Max. RCF (x g) 4390
Max. Capacity (ml) 3000
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel 10/10 rates or direct setting of time
Programmability 40 programs
Speed Range (r/min) 100-5000
Speed Control Accuracy (r/min) ±20
Timer Range(min:sec) 0-99:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 15A
Dim. (W x D x H) mm 550 x 660 x 790
Weight (kg) 120

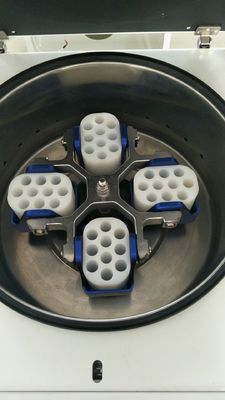

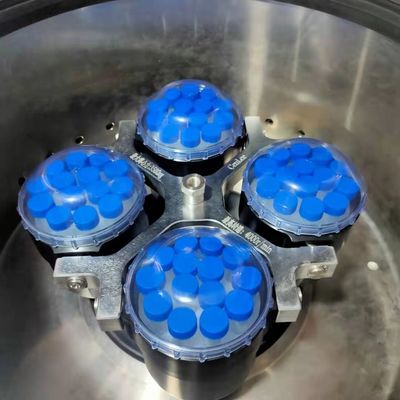

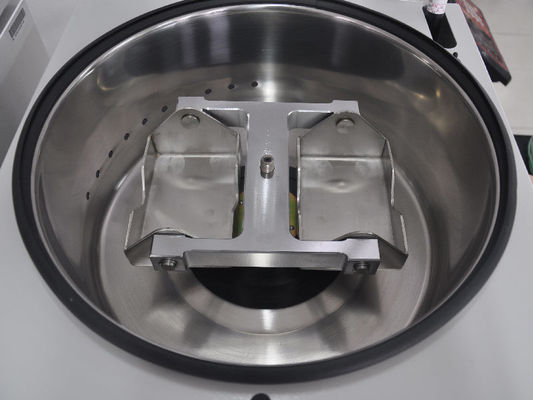

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 12 x 15 5000 4390 2-15 Available
Swing-out Rotor  2 4 x 500 4000 3040 2-500 Available
 Plare Rotor 3 2 x 2 x 96wells 4000 2200 0.2 Unavailable
Swing-out Rotor 4 4 x 750 4000 3500 2-750 Available
Swing-out Rotor 5 6 x 250 4000 3580 2-250 Available
Swing-out Rotor 6 4 x 250 4200 3500 2-250 Available
