prp centrifuge machine, Fat Extraction centrifuge, Platelet Rich Plasma/Blood centrifuge

Place of Origin: China
Brand Name: Cenlee
Certification: ISO9001/13485，CE
Model Number: TDL5B
Product Details
Place of Origin:
China
Brand Name:
Cenlee
Certification:
ISO9001/13485，CE
Model Number:
TDL5B
Minimum Order Quantity:
1 set
Price:
negotiable
Standard Packaging:
Wooden Case
Supply Ability:
50 sets/month
Specifications
Driven:
Microprocessor
Name:
TDL5B PRP Centrifuge Machine For Beauty
Max. RPM::
5000r/min
Max. RCF::
4390 X G
Max. Capacity::
:4 X 50ml
Temp. Control::
N/A
Highlight:

Fat Extraction PRP Centrifuge

,

200ml PRP Centrifuge

,

Microprocessor centrifuge prp machine

Product Description

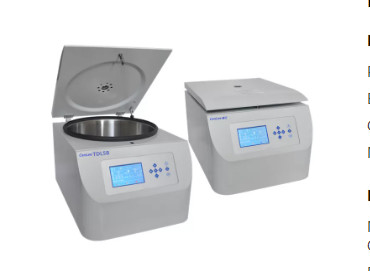

TDL5B benchtop low speed centrifuge, prp centrifuge machine, and fat extraction centrifuge specialized in beauty

Platelet Rich Plasma/Blood centrifuge, Blood sepator centrifuge

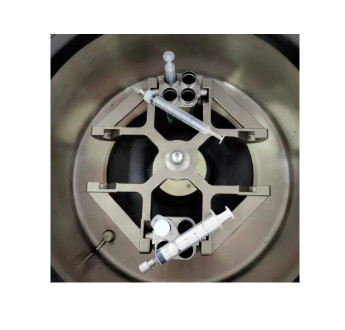

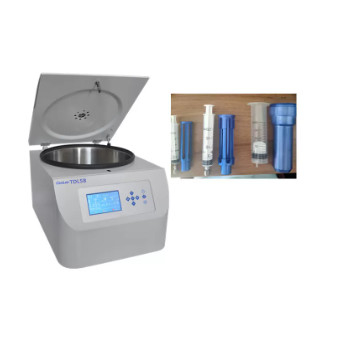

Rotor with swing-out tube in 4*50ml syringe or 16*10ml syringe are available

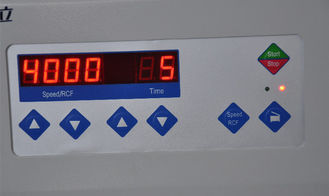

  • Microprocessor-based controlled with user-friendly operational panel and bright LED display. Seperation protocols can be automatic stored.
  • AC frequency motor drived with superspeed shaft for smooth running and free maintanence.
  • Steel body, stainless steel chamber and imported key components for easy cleaning and durability. Multistage damping system for small vibration and low noise.
  • Lid interlocking device greatly increases the operational safety. Air conduction system reduces much heat to protect the control board and avoid the aging of circuits.
  • Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  • Unique air guide design for small temperature rise during seperation to effectively protect samples.
Specifications
Benchtop Low Speed Centrifuge, with rotor
Model TDL5B
Max.Speed (r/min) 5000
Max. RCF (x g) 4390
Max. Capacity (ml) 4 x 50
Control Microprocessor
Drive DC Brushless Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 100-5000
Speed Control Accuracy (r/min) ±30
Timer Range(min) 1-99
Noise (dB) ≤ 55
Power Supply V (Hz) 220/110 (50/60), 10A, single phase
Dim. (W x D x H) mm 415 x 560 x 355
Weight (kg) 44
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

 Adapters for smaller tubes
PRP rotor 1 8 x 10/15 4000 2680 5-15 Available
PRP rotor 2 12 x 10/15 4000 2680 5-15 Available
Fat extration rotor 3 4 x 20 4000 2680 5-20 Available
Microplate Rotor 4 4 x 50 4000 2680 5-50 Available

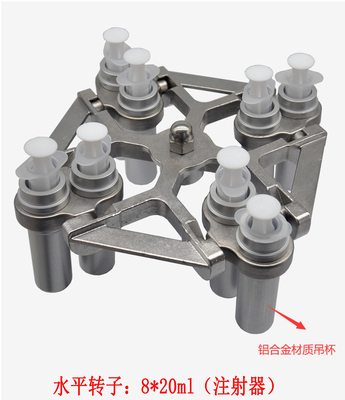

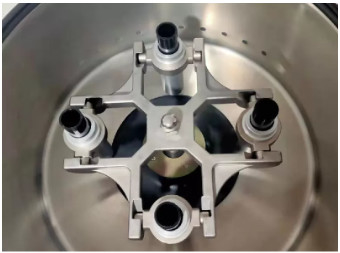

Rotor with swing- out tube in 4*50ml syringe or 16*10ml syringe are available
