Fixed Angle Rotor 3PH Laboratory Centrifuge Machine 4L Large Capacity

Fixed Angle Rotor 3PH Laboratory Centrifuge Machine 4L Large Capacity

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
CFH10R
Name:
Fixed Angle Rotor 3PH Laboratory Centrifuge Machine 4L Large Capacity
Power Supply V (Hz):
220/110 (50/60), 3A, 3 Phase
Max. RPM::
10000
Max. RCF::
18300 X G
Max. Capacity::
4000ml
Temp. Control::
-20oC-40oC
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

Fixed Angle Rotor Laboratory Centrifuge Machine

,

3PH Laboratory Centrifuge Machine

,

large capacity centrifuges

Product Description

10R General Purpose Large Capacity Centrifuge Laboratory Centrifuge Machine



  • Controlled by microcomputer with user-friendly panel and LED and LCD dual display. run control by speed or RCF.
  • Drived by the high frequency maintenance – free motor with superspeed draft for stable running at high speed.
  • Unique damping system and CFC-free compressor combine to ensure small vibration and low noise.
  • Steel body and stainless steel centrifugal chamber for easy cleaning and durability.
  • Designed with various protection devices for maximum operational safety, such as over-temperature detection, over-speed detection,lid lock system, imbalance protection and life calculation of unit and rotors, etc.
  • Pre-cooling cools the chamber quickly. 10 pre-set acceleration/braking rates, or its time direct input ensures the best seperation even for the most delicate samples.
  • Memory function can store up to 40 runs for your repetitive separation.
  • Hold on function for short and quick centrifugation.
  • Multifuntional centrifuge both in high speed and in low speeds with large capacity, widely used in the field of research and production and so on.
Specifications
Floorstanding General Purpose Refrigerated Centrifuge, without rotor
Model CFH10R
Max.Speed (r/min) 10000
Max. RCF (x g) 18300
Max. Capacity (ml) 6000
Control Microprocessor
Drive AC Frequency Conversion Motor with large torque
Accel/Decel Rates 10/10
Programmability 40 programs
Refrigeration Environmental CFC-free Refrigeration System with R404a refrigerant
Speed Range (r/min) 100-10000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hr:min:sec) 0-99:59:59
Noise (dB) ≤ 65
Power Supply V (Hz) 220/110 (50/60), 3A, 3 phase
Dim. (W x D x H) mm 820 x 710 x 1150
Weight (kg) 268
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes

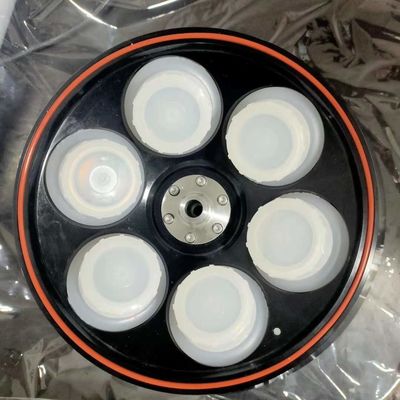

Fixed Angle Rotor 1 6 x 300 10000 18300 0.2-300 Available
Fixed Angle Rotor 2 6 x 500 8000 11680 0.2-500 Available
Fixed Angle Rotor 3 6 x 1000 7200 12166 0.2-1000 Available
Swing-out Rotor with round buckets 4 6 x 1000 4200 5100 5-1000 Available
Swing-out Rotor 5 4 x 1000 4200 4430 5-1000 Available
