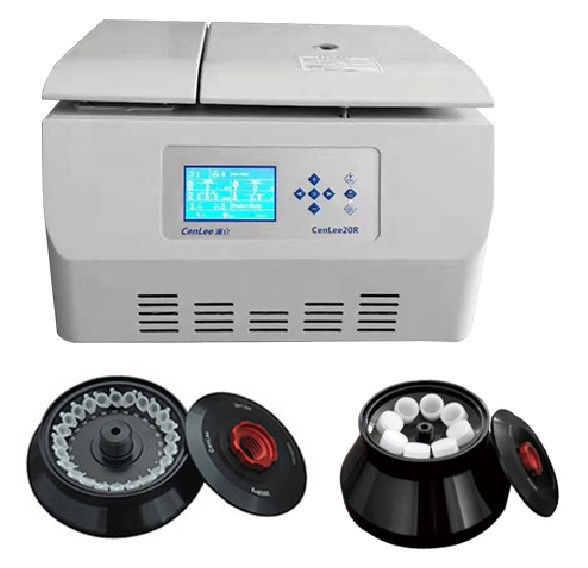

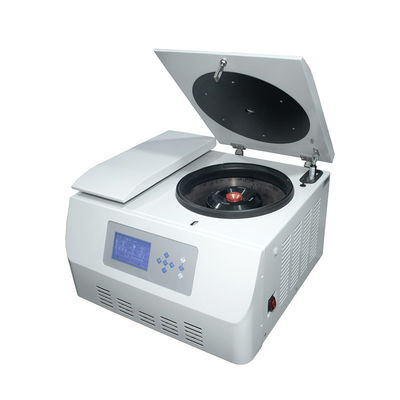

High speed Benchtop centrifuge machine, 20500rpm Fixed Angle Rotor Centrifuge

High speed Benchtop centrifuge machine, 20500rpm Fixed Angle Rotor Centrifuge

MOQ: 1 set
Price: negotiable
Standard Packaging: Wooden Case
Supply Capacity: 50 sets/month
Detail Information
Place of Origin
China
Brand Name
Cenlee
Certification
ISO9001/13485,CE
Model Number
CenLee20R
Name:
20R Benchtop High Speed Refrigerated Centrifuge Fixed Angle Rotor Centrifuge
Mode:
RCF/PRM
Max. RPM::
20500
Max. RCF::
29200 X G
Max. Capacity::
4 X 100ml
Temp. Control::
-20oC-40oC
Minimum Order Quantity:
1 set
Price:
negotiable
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
High Light:

Benchtop Fixed Angle Rotor Centrifuge

,

20500RPM Fixed Angle Rotor Centrifuge

,

PRM High Speed Refrigerated Centrifuge

Product Description

20R Benchtop High Speed Refrigerated Centrifuge Fixed Angle Rotor Centrifuge



  • Microprocessor-based controlled with user-friendly operational panel. Frequency converter motor drived for low noise and free maintanance.
  • Easy to read digital display and automatic memory for protocols, easy for the repetitive operation.
  • In automatic RCF/PRM mode, you can set runs to a desired speed or g-force.
  • 9 accelaration and 10 braking rates (0 is for free brake) and 3-level damping system ensure the best seperation result.
  • Liquid seeping prevention with unique rubber isolation gasket firmly seals the motor for protecting motor and electronic components.
  • Low-noise output lower than 55dB offer you a comfortable reseach environment.
  • Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy. Pre-cooling can give fast cooling for the chamber.
  • Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
Specifications
Benchtop High Speed Refrigerated Centrifuge, with rotor
Model CenLee20R
Max.Speed (r/min) 20500
Max. RCF (x g) 29200
Max. Capacity (ml) 600
Control Microprocessor
Drive AC Frequency Conversion Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 300-20500
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(hour:min:sec) 0-99:59:59
Noise (dB) ≤ 55
Power Supply V (Hz) 220/110 (50/60), 10A, single phase
Dim. (W x D x H) mm 550 x 530 x 360
Weight (kg) 68

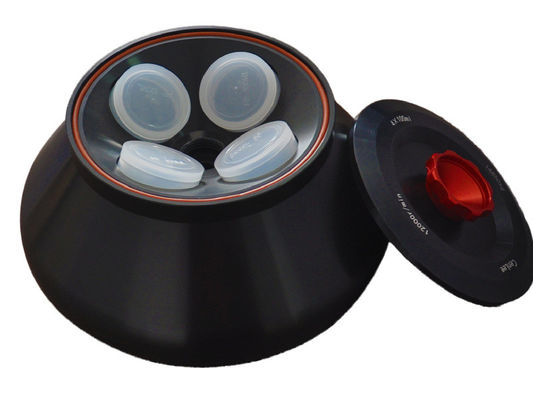

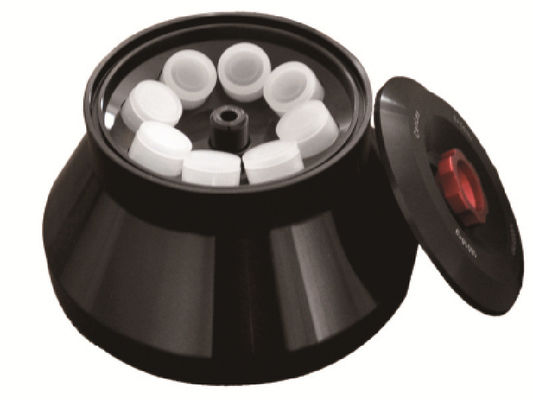

Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 12 x 1.5/2.2 20500 29200 0.5-2.2 Available
Fixed Angle Rotor 2 12 x 5 16500 19480 0.5-5 Available
Fixed Angle Rotor 3 12 x 10 15000 19369 0.5-10 Available
Fixed Angle Rotor 4 8 x 15 (conical) 12000 14972 0.5-15 Available
Fixed Angle Rotor 5 8 x 20 15000 22898 0.5-20 Available
Fixed Angle Rotor 6 6 x 50 13000 18516 0.5-50 Available
Fixed Angle Rotor 6 6 x 50 (conical) 13000 18516 0.5-50 Available
Fixed Angle Rotor 7 24 x 1.5/2.2 16800 25875 0.5-2.2 Available
Fixed Angle Rotor 8 4 x 100 12000 15616 0.5-100 Available
Fixed Angle Rotor 9 6 x 100 12000 16421 0.5-100 Available
Fixed Angle Rotor 10 48 x 0.5 13000 16410 0.5 Unavailable
Fixed Angle Rotor 11 48 x 1.5/2.2 13000 17933 0.5-2.2 Available
Microplate Rotor 12 2 x 2 x 48wells 3000 1400 0.2 Unavailable

Benchtop High Speed Refrigerated Centrifuge
Model: CenLee20R

Max. RPM: 20500
Max. RCF: 29200 x g
Max. Capacity: 4 x 100ml
Temp. Control: -20oC-40oC
