Small 40ml High Speed Microcentrifuge 5ml Tubes Lab Scale Brushless Motor

Small 40ml High Speed Microcentrifuge 5ml Tubes Lab Scale Brushless Motor

Brand Name: Cenlee
Model Number: TG16-W
MOQ: 1 set
Price: negotiable
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
Small 40ml High Speed Microcentrifuge 5ml Tubes Lab Scale Brushless Motor
Max. Speed::
16000r/min
Max. RCF::
17800xg
Max. Capacity::
40ml
Temp. Control::
N/A
Dim. (W X D X H) Mm:
220 X 290 X 205
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
Highlight:

Small High Speed Microcentrifuge

,

40ml High Speed Microcentrifuge

,

5ml Tubes lab scale centrifuge

Product Description

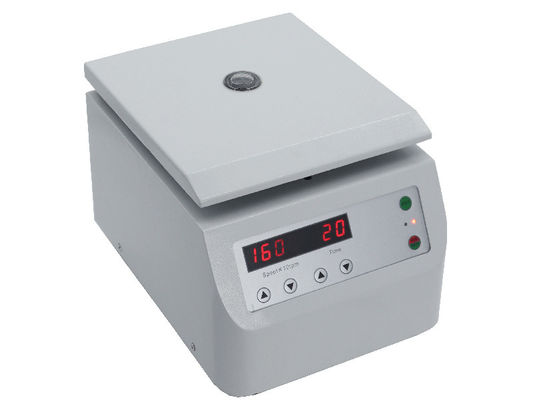

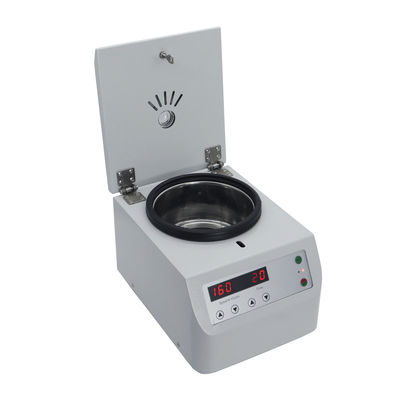

TG16-W Small High Speed Microcentrifuge Laboratory Centrifuge Machine for 1.5-5ml tubes



  • Microprocessor-based controlled with user-friendly operational panel and bright LED display. Seperation protocols can be automatic stored.
  • Brushless AC frequency motor with a superspeed shaft for smooth running and free maintanence.
  • Multistage damping system for small vibration and low noise.
  • Steel body, stainless steel chamber and imported key components for easy cleaning and durability.
  • Designed with various protection devices for maximum operational safety, such as lid lock system, over-speed detection, imbalance detection and so on. Rotor can be autoclavable.
  • Unique air guide design for small temperature rise to effectively protect samples.
Specifications
Microlitre Centrifuge, with rotor
Model TG16-W
Max.Speed (r/min) 16000
Max. RCF (x g) 17800
Max. Capacity (places x ml) 12 x 1.5/2.2
Control Microprocessor
Drive Brushless Motor
Speed Range (r/min) 300-16000
Speed Control Accuracy (r/min) ±20
Timer Range (min) 1-99
Noise (dB) ≤ 58
Power Supply V (Hz) 220/110V (50/60), 3A single phase
Dim. (W x D x H) mm 220 x 290 x 205
Weight (kg) 12
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes

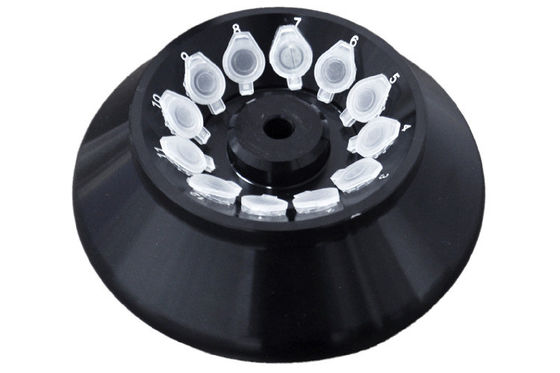

Fixed Angle Rotor 1 12 x 1.5/2.2 16000 17800 0.1-2.2 Available
Fixed Angle Rotor 2 8 x 5ml 13000 11500 0.1-5 Available
