| MOQ: | 1 set |
| Price: | negotiable |
| Standard Packaging: | 3-ply wooden case |
| Supply Capacity: | 500 sets per month |

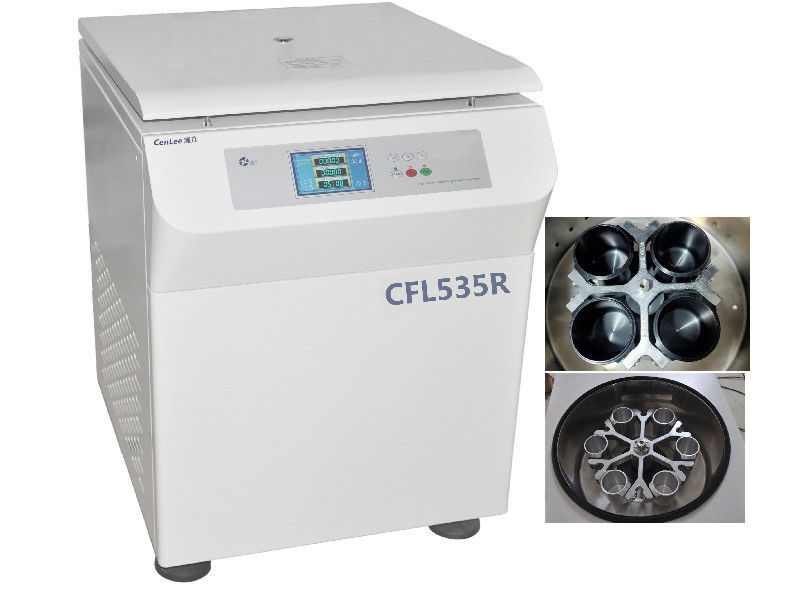

CenLee5FR Low Speed Large Capacity Refrigerated blood bank Centrifuge
Outstanding versatility for your wide applications
Advanced control system for excellent separation
User-friendly operation and information rich display
Powerful refrigeration with pre-cooling function
Many detection functions for maximum operational safety
Quality components for reliable and long-lasting work
Low noise and tiny vibration
Specifications
| Low Speed Large Capacity Refrigerated Centrifuge , without rotor | |
| Model | CenLee5FR |
| Max.Speed (r/min) | 6000 |
| Max. RCF (x g) | 6037 |
| Max. Capacity (ml) | 4000(4 x 1000) |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel | 10/10 rates |
| Programmability | 25 programs |
| Refrigeration | Environmental CFC-free Refrigeration System |
| Speed Range (r/min) | 100-6000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(min:sec) | 0-99:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 20A, single phase |
| Dim. (W x D x H) mm | 620 x 740 x 810 |
| Weight (kg) | 150 |
Rotors & Adapters
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 6 x 50 | 6000 | 5120 | 1.5-50 | Available |

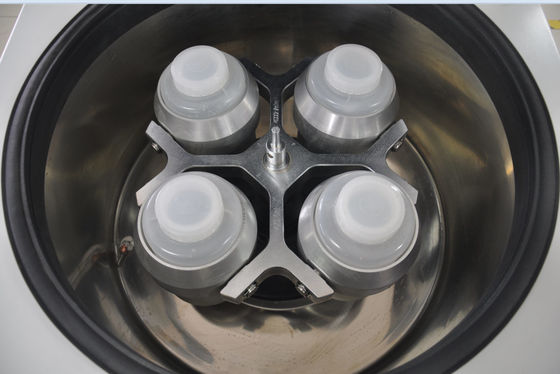

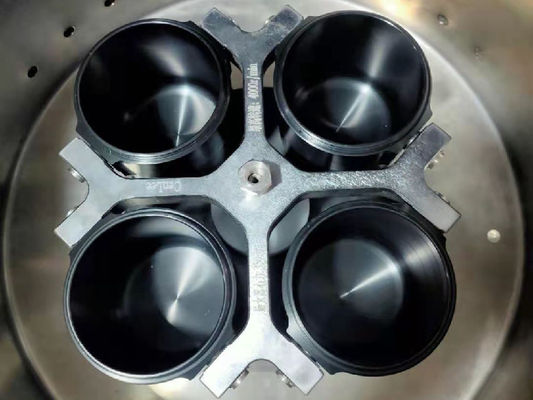

| Swing-out Rotor with round buckets | 2 | 4 x 1000 | 5000 | 6037 | 1.5-1000 | Available |
| Adapters | 4 x 1 x 500 | 5000 | 6037 | 500 | -- | |
| 4 x 1 x 300 | 300 | -- | ||||
| 4 x 1 x 250(conical) | 250 | -- | ||||
| 4 x 1 x 200ml blood bag | 200 | -- | ||||
| 4 x 3 x 100 | 100 | -- | ||||
| 4 x 5 x 50(conical) | 50 | -- | ||||
| 4 x 5 x 50 | 50 | -- | ||||
| 4 x 14 x 15(conical) | 15 | -- | ||||
| 4 x 14 x 15 | 15 | -- | ||||
| 4 x 37 x 7 | 7 | -- | ||||
| 4 x 24 x 5 | 5 | -- | ||||
| 4 x 28 x 1.5/2.0 | 1.5/2.0 | -- | ||||

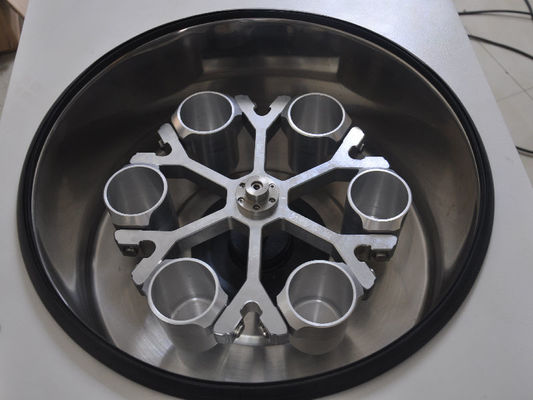

| Swing-out Rotor with round buckets | 3 | 6 x 500 | 5000 | 5925 | 5-500 | Available |
| Adapters | 6 x 1 x 300 | 5000 | 5925 | 300 | -- | |
| 6 x 1 x 100 | 100 | -- | ||||
| 6 x 19 x 5 | 5 | -- | ||||
| 6 x 7 x 20 | 20 | -- | ||||
| 6 x 9 x 15 | 15 | -- | ||||
| Swing-out Rotor with rectangular baskets | 6pcs | 5000 | 5925 | 1.5-250 | Available | |
| Adapters | 6 x 1 x 250 | 5000 | 5925 | 300 | -- | |
| 6 x 4 x 50(conical) | 50 | -- | ||||
| 6 x 4 x 50 | 50 | -- | ||||
| 6 x10 x 15(conical) | 15 | -- | ||||
| 6 x10 x 15 | 15 | -- | ||||
| 6 x 20 x 10 | 10 | -- | ||||
| 6 x 28 x 5 | 5 | -- | ||||
| 6 x 25 x 1.5/2.0 | 1.5/2.0 | -- |
|
|
