Medical Centrifuge Machine
Created with Pixso.

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles

Brand Name: Cenlee
Model Number: TDZ5-WS
MOQ: 1 set
Price: negotiable
Supply Ability: 50 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
Benchtop Centrifuge Machine
Display:
LED
Max. RPM::
5000rpm
Max. RCF::
4390 X G
Max. Capacity::
4 X 100ml
Temp. Control::
N/A
Rotor Type:
Angle Rotor /swing Out Rotor
Motor:
Brushed Motor
Speed Accuracy:
±10r/min
Power:
400w
Packaging Details:
Wooden Case
Supply Ability:
50 sets/month
Product Description


TDZ5-WS 5000rpm Swing Out Rotor LED LCD Benchtop Low Speed Centrifuge Machine



  • Microprocessor-based controlled with user-friendly operational panel. LED or LCD display for your option. Seperation protocols can be automatic stored.
  • Frequency converter motor drived with superspeed shaft for smooth running and free maintanence.
  • Steel body and stainless steel chamber for easy cleaning and durability. Multistage damping structure for tiny vibration and low noise.
  • Lid interlocking device greatly increases the operational safety. Air conduction system reduces much heat to protect the control board and avoid the aging of circuits.
  • Designed with various protection devices for maximum operational safety, such as lid lock, over-speed, imbalace and so on. Diverse functions such as automatic calculation for RCF, automatic balancing ensure more safety. Rotors can be autoclavable.
  • Unique air guide design for small temperature rise during seperation to effectively protect samples.

Technical Parameter



Model TDZ5-WS Power supply AC 220V 50Hz 5A
Maximum speed 5000r/min Machine noise ≤58dB(A)
Maximum RCF 4390×g Power 400W
Max capacity 4x250ml Chamber diameter Φ360
Sample capacity 10ml-250ml Dimensions 415×590×355mm
Speed Accuracy ±10r/min Net weight 44kg
Timing range 0-99min





TDZ5-WS Rotor options

Rotor type No. Capacity Max Speed(r/min) Max RCF(×g)
Main machine TDZ5-WS   5000 4390
Swing out rotor NO.1 4×100ml 5000 4390
Pipe racks 4×100ml
Swing out rotor NO.2 8×50ml 4000 2810
Pipe racks 8×100ml
Pipe racks 32×15 /10/7ml vacuum tubes
Bucket 64×7/5ml vacuum tubes
Bucket 72×7/5ml vacuum tubes
Bucket 48×5/7ml vacuum tubes
Enzyme Plate rotor NO.3 2×2×96 well 4000 2200
Swing out rotor NO.4 4×250ml 4000 3000
Round cup

4×250ml

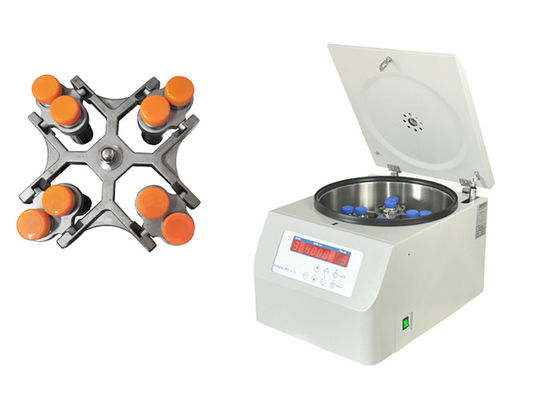

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 0

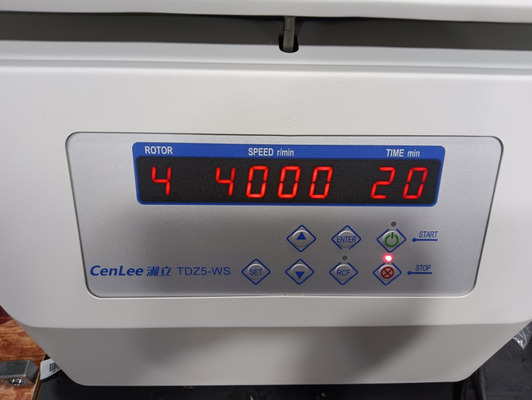

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 1

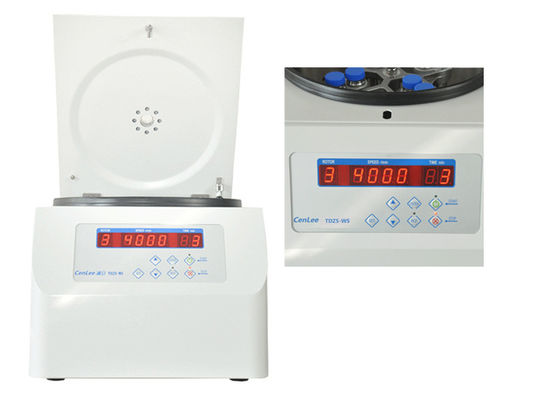

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 2



250ml to 50ml adapter

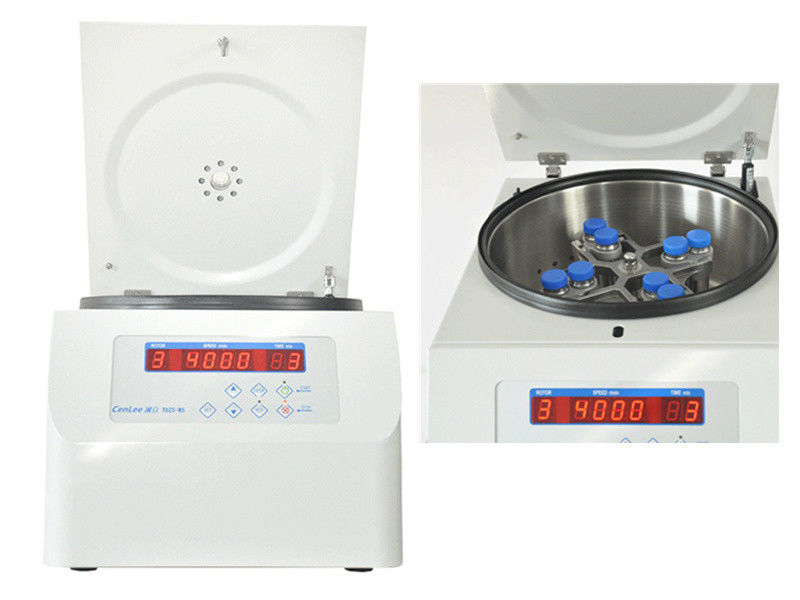

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 3

Product real display:

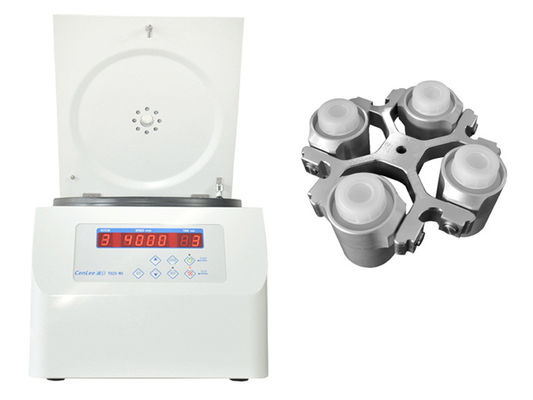

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 4





TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 5TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 6



Cenlee Centrifuge
Packaging & Shipping

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 8



TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 9

FAQ

TDZ5-WS Swing Out Rotor Benchtop centrifuge with 100ml 250ml centrifuge bottles 10



1. How can I choose the suitable one of centrifuge?

Dear customer, please tell me the information as below, then we can recommend you suitable model.

a, please tell me your usage of centrifuge.

b, let me know how many max speed and max volume of you need.

c, please tell us the size of tubes you using.

d, let us know the whether you need refrigerated function or not.



2.Can I get some samples?

We are honored to send you our samples and according to our company’s rule.



3.How about the delivery time?

For Sample order will be prepared within 5 Days.

For bulk order, normally,it needs 20-30days, it is based on your QTY



4.Can you do custom-made?

OEM, ODM both welcomed. We also can help you to design.

Silk print your logo on the product; Customized Carton box;
Design and produce based on your Idea and draft



5.How about your after service?

a, Any Inquiries will be replied within 24 hours

b, Professional manufacturer, Quality issue, competitive price

c, All products will be strictly quality checked and well-packed before shipping

d,The free warranty period for the equipment is 12 months from the date of installation.

e,If the equipment fails during normal use, our company will promptly repair it free of charge and replace the corresponding accessories free of charge (except for human failure and force majeure).



6. Can you tell me your main customers?

Sorry we could not tell you except customer’s permission. At the same time,your information also will be protected.



Cenlee Company is a leading manufacturer of high-quality laboratory centrifuges in China., with 40 + years of R & D experience and serving more than 50 countries around the world. our products are certificated ISO9001/13485 CE and SGS. We have significant advantages in quality and performance, such as higher precision and greater centrifugal force and longer service life. These can bring you greater value.
