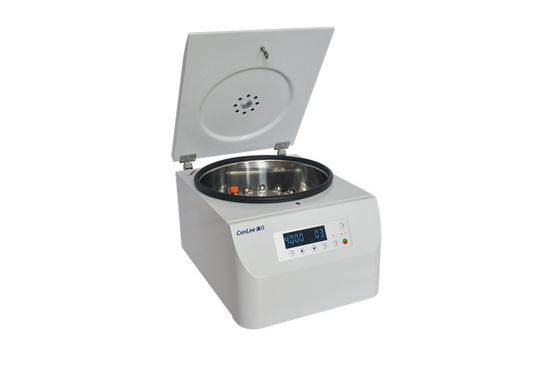

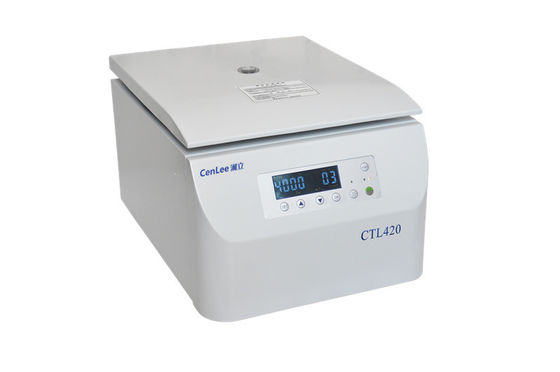

CTL420 4200rpm 5/15/20/50ml Benchtop Horizontal Swing out rotor PRP centrifuge Machine

CTL420 4200rpm 5/15/20/50ml Benchtop Horizontal Swing out rotor PRP centrifuge Machine

Brand Name: Cenlee
Model Number: CTL420
MOQ: 1 set
Price: negotiable
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
ISO9001/13485,CE
Name:
CTL420 Horizontal Swing Out Rotor Prp Centrifuge
Max. RPM::
4200
Max. RCF::
2760 X G
Max. Capacity::
240ml
Temp. Control::
N/A
Noise (dB):
≤ 60
Packaging Details:
carton
Supply Ability:
500 sets/month
Highlight:

240ml Mini Benchtop Centrifuge

,

2760RCF Mini Benchtop Centrifuge

,

4200RPM bench top centrifuge

Product Description

CTL420 4200rpm 5/15/20/50ml Benchtop Horizontal Swing out rotor PRP centrifuge Machine



  1. Used in biochemistry laboratories, clinical testing in hospitals and so on.
  2. Microprocessor-based controlled and DC brushless motor drived for smooth running and low noise.
  3. Steel boby with compact and streamline design and unique damping system for automatic balancing function.

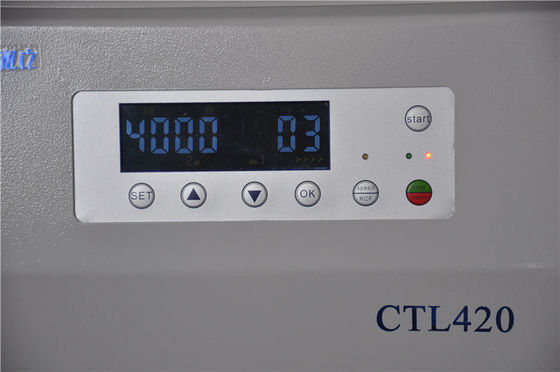

  4. User-friendly operational panel wich automatic RCF/RPM mode.
  5. Designed with various protection devices and fault diagnosis system for maximum operational safety, such as lid lock system, over-speed detection and so on.
  6. Ventilated centrifuge for small temperature rise during seperation.
  7. Various rotors designed for different capacity tubes for your option.
Specifications
CTL420 4200rpm 5/15/20/50ml Benchtop Horizontal Swing out rotor PRP centrifuge Machine
Model CTL420
Max.Speed (r/min) 4000
Max. RCF (x g) 2760
Max. Capacity (ml) 240
Control Microprocessor
Drive DC Brushless Motor
Speed Range (r/min) 100-4000
Speed Control Accuracy (r/min) ±30
Timer Range(min) 1-99
Noise (dB) ≤ 60
Power Supply V (Hz) 220/110 (50/60), 5A, single phase
Dim. (W x D x H) mm 355 x 485 x 285
Weight (kg) 22
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 18 x 10 4000 2200 5-15 Available
Fixed Angle Rotor 12 x 20 4000 2200 5-20 Available

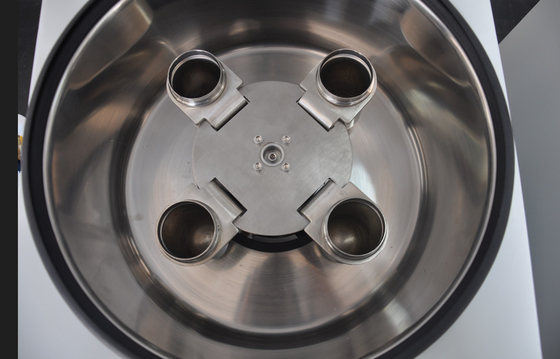

Disc Rotor with swing-out tube holders 2 4 x 50 4200 2760 5-20 Available
Disc Rotor with swing-out tube holders 12 x 15 4200 2760 5-15 Available
12 x 5 4200 2760 5 Unavailable

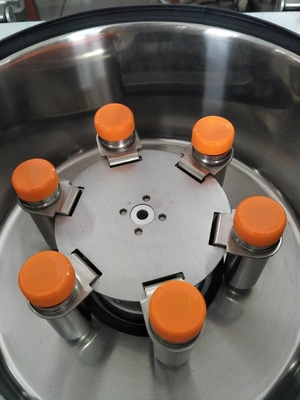

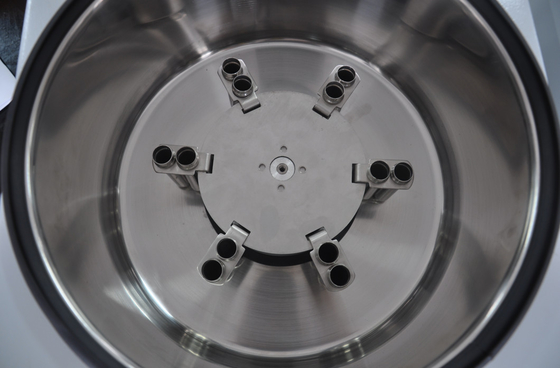

Disc Rotor with swing-out tube holders 8 x 10 4200 2760 5-10 Available
16 x 5 4200 2760 5 Unavailable
